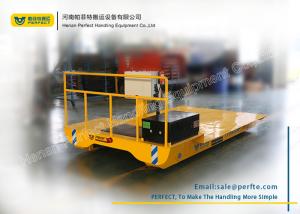

Heavy Industry Battery Powered Cart Flat Rail Transfer Trolley
Description of Rail Transfer Trolley
Flat rail transfer trolley is powered by the battery, the DC motor and gear reducer are controlled by DC control system to drive wheels and make the battery powered cart flat rail transfer trolley start, stop, go forward and backward, speed up and slow down and so on. This rail transfer trolley can be used both on the 'S' and arc-shaped railways. Our PERFECT company is the professional manufacturer with more than 15 years experience in designing and producing flat rail transfer trolley.
Characters of Rail Transfer Trolley
1) All of our battery powered cart flat rail transfer trolley are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons.
2) It can be used to transfer anything you imagine and working situations, such as steel coil, billets, bloom, ladle & scrap, locomotive, trailer, workpieces to painting shops or blasting room, etc;
3) We designed and added the special device to the rail transfer trolley can apply in the high temperature and explosion working environment.
Working principle of Rail Transfer Trolley
This kind of flat rail transfer trolley is powered by battery, which is lead-acid battery pack. The battery is installed in the trolley, and supply DC electricity to the control system. It is consist of battery, motor, reducer, cart frame, electric appliance, etc.

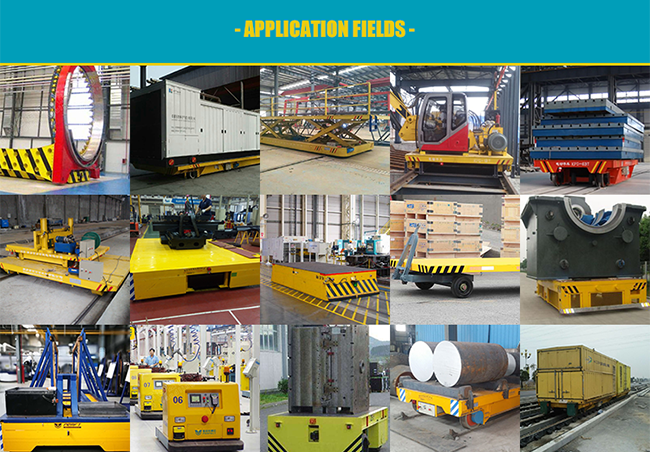

Application Show of Rail Transfer Trolley
Our battery powered cart flat rail transfer trolley not only can transport all kinds of coils in steel mill, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.
Advantages of Rail Transfer Trolley
· Safe and environment friendly
· Big starting power
· Small impact to the gear reducer
· No restriction of the running distance
· Can running on s-shape rail, arc-shape rails
· Has no limit on working distance
· Anti-explosion,Anti-high temperature
· Stable start, big starting power, long lifetime.
Parameter List of Rail Transfer Trolley
| BXC SERIES TRANSFER CART TECHNICAL PARAMETER TABLE |
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
About Us
Henan Perfect Handling Equipment Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,battery transfer trolley as one of the professional manufacturing company, which has a modernized management team and excellent staff. And our products gets CE, SGS,ISO certificate and other 8 national patent, and our products have been exported to more than 40 countries and regions.
Our after-service
1>. Our commitment: The load bearing safety factor of the trolley is no less than 120%.
2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
3>. 16 hours engineering service and 24 hours internet service for our customers
4>. During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
