heavy industry use steel coil electric railway flat vehicle with rail powered trolley

Name: heavy industry use steel coil electric railway flat vehicle with rail powered trolley
Brand: Coil Transfer Trolley
Price: 2800 USD

China heavy industry use steel coil electric railway flat vehicle with rail powered trolley wholesale

Brand Name : Coil Transfer Trolley

Model Number : Coil Transfer Trolley

Certification : CE ISO SGS

Place of Origin : Henan China

MOQ : 1

Price : Usd2800-4600/set

Supply Ability : 30sets/week

Delivery Time : 20 work days after received balance payment

Packaging Details : Trap and wooden case

Product Name : heavy industry use steel coil electric railway flat vehicle with rail powered trolley

Ground Clearance(mm) : 50-75

Type : Coil Transfer Trolley

Motor Power : 1-15

Material : Carbon Steel

Running Speed(m/min) : 0-25

Running time When Full Load : 4.32

Rail Inner Gauge(mm) : 1200-2000

Wheel Base(mm) : 1200-7000

Contact Now

heavy industry use steel coil electric railway flat vehicle with rail powered trolley

The heavy industry use steel coil electric railway flat vehicle with rail powered trolley is powered by battery,low voltage rail,cable drum,trailing cable.There are mounted V-shape and roller on electric powered coil transfer trolley to protect the coil from falling down from the electric powered coil transfer trolley.The V-shape supporting can be designed according to coil diameter,and roller distance can be adjusted as per coil dia.V-shape supporting and roller can be removable from the electric powered coil transfer trolley.We can design coil electric powered coil transfer trolley according to the workshop application,material dimension.It can be applied in all kinds of occasion even severe working environment.

Functions of heavy industry use steel coil electric railway flat vehicle with rail powered trolley

The electric powered coil transfer trolley is Anti-high temperature,Anti-high explosion;
The electric powered coil transfer trolley is powered by battery,low voltage rail,cable drum,trailing cable.
With lifting holes, electric powered coil transfer trolley is convenient to shipment;
The electric powered coil transfer trolley has a feature of stable start, big starting power, long lifetime;
The electric powered coil transfer trolley can run on the C-form track or S-form track and L-form track;
Running distance of electric powered coil transfer trolley is unlimited;
Safe and convenient operation is available for this electric powered coil transfer trolley;
High using frequency for electric powered coil transfer trolley.

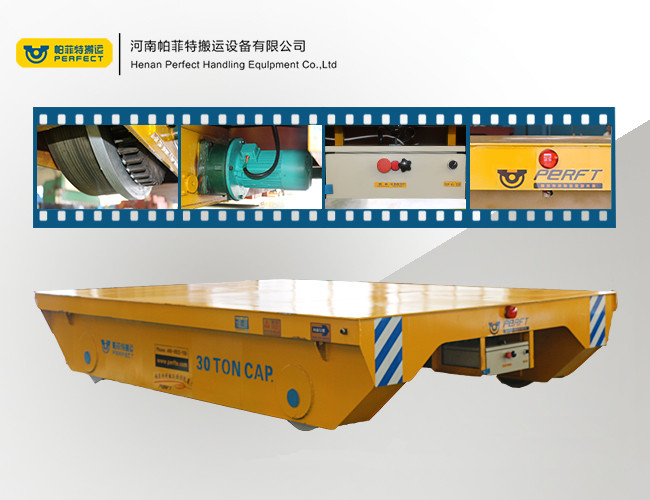

Main Componences of the heavy industry use steel coil electric railway flat vehicle with rail powered trolley

heavy industry use steel coil electric railway flat vehicle with rail powered trolley

Technical Table of the heavy industry use steel coil electric railway flat vehicle with rail powered trolley

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Running time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for Once Charge(KM)		6.5	4.8	4	3.8	3.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Battery Voltage(v)		24	48	48	72	72
Battery Capacity(Ah)		180	180	330	440	600

The Scheme of heavy industry use steel coil electric railway flat vehicle with rail powered trolley

heavy industry use steel coil electric railway flat vehicle with rail powered trolley

Application and Usage of the heavy industry use steel coil electric railway flat vehicle with rail powered trolley

heavy industry use steel coil electric railway flat vehicle with rail powered trolley
