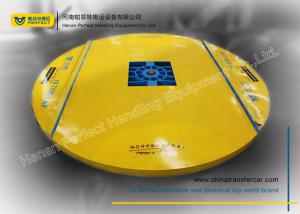

1t Capacity Rails Transfer Flat Cart With Turntable

Product Categories

Henan Perfect Handling Equipment Co., Ltd.

Contact Now

1t Capacity Rails Transfer Flat Cart With Turntable

Name: 1t Capacity Rails Transfer Flat Cart With Turntable
Brand: transfer flat cart with turntable on rails
Price: 3000 USD

China 1t Capacity Rails Transfer Flat Cart With Turntable wholesale

Brand Name : transfer flat cart with turntable on rails

Model Number : transfer flat cart with turntable on rails

Certification : CE ISO SGS

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : USD 3000~7800 set

Supply Ability : 100 sets month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : transfer flat cart with turntable on rails

Capacity : 1-300 ton

Application : Industrial Filed

Color : customized

Dimension : Customized as Practical Needs

after-sales Service Provided : Engineers available to service machinery

Contact Now

Good price Factory use transfer flat cart with turntable on rails

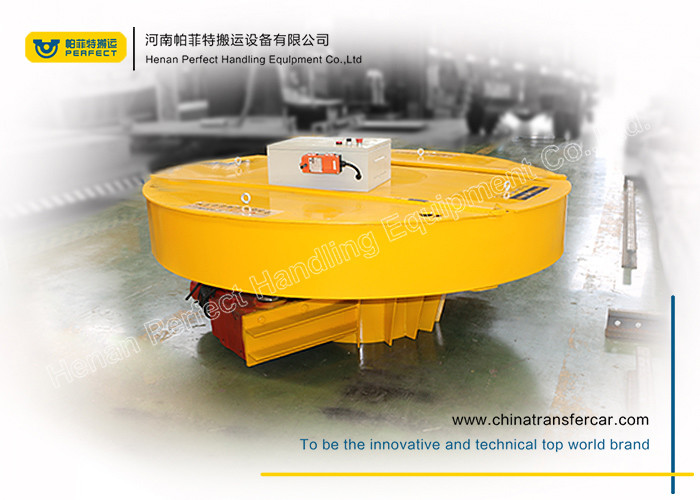

What is transfer flat cart with turntable on rails

The transfer flat cart with turntable on rails is a kind of handling system, which can make the rail car turn 90 degree on rails. The turntable system runs stedily and has the features such as high rail jointing accuracy and can meet full automatic electrical control.Cooperated with inverter and sensors, it could realize rails accurate but joint for excellent turning performance with 90/180/360 swerve angle.

1t Capacity Rails Transfer Flat Cart With Turntable

Technical Parameter

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Max. Wheel Load (t)	2.8	5.6	7.7	10	12
Ground Requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table Size (mm)	3000 X 2000	4500 X 2200	5000 X 2200	5500 X 2300	6000 X 2300
Height (mm)	450	600	650	700	700
Wheel Base (mm)	1500	1700	1700	1800	1800
Axles Distance (mm)	2500	3900	4300	4800	5200
Turning Radius (mm)	2501	3901	4301	4801	5201
Turning Structure	Mechanical
Motor Power (KW)	3.5	7	10	12	15
Wheel Diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel Material	ZG55+hydropurture
Running Speed (m/min)	0-15			0-12
Brake Principle	Electric magnetic brake
Operation Method	Raido Remote Control
Battery Maintainance	Free of maintainance
Charger's Installation	Installed on cart			Split-type
Cart Color	Customized
Charger's Function	Automatically cut off the power when the battery is fully charged
Radar Control	3-0.3 m, Automatic stop for obstacles
Warning Equipment	Horn and Flash Light
Other Functions	Turning light, night light and power display

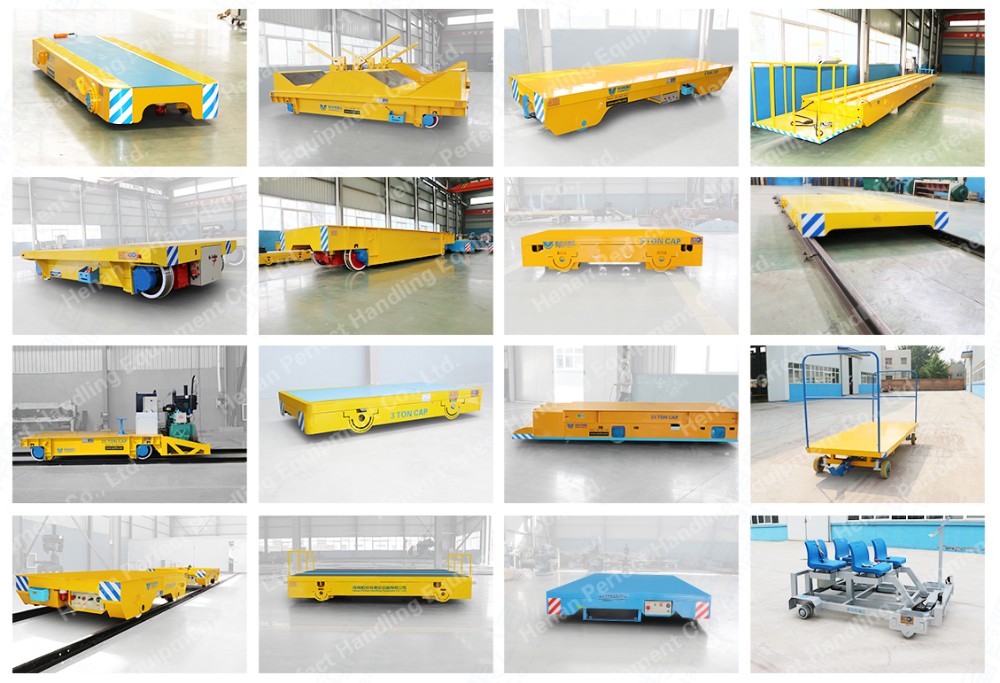

Related Transfer Cart Products
