10 ton coil rail guided transfer trolley for factory warehouse coils transportation

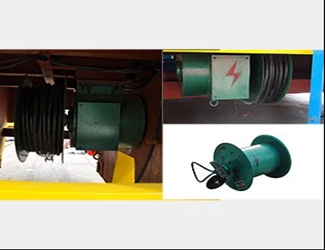

The 10 ton coil rail guided transfer trolley for factory warehouse coils transportation is rail guided,and you can also choose the supply power ways,such as the:cable drum,cable reel,battery powered...The Wheel Base(mm) of the 10 ton coil rail guided transfer trolley for factory warehouse coils transportation is 1200-7000.The Rail Inner Gauge(mm) of the 10 ton coil rail guided transfer trolley for factory warehouse coils transportation is 1200-2000.The 10 ton coil rail guided transfer trolley for factory warehouse coils transportation is running on the rails,and you can add the hydraulic lifting device if need.If you want to transport coils,the electric can also add the V/U shape.If you want to transfer hot melton material,we can add the ladle support,and High temperature resistant material.
Advantages and functions of 10 ton coil rail guided transfer trolley for factory warehouse coils transportation
1.Running on the rails.
2.Rail Inner Gauge(mm) is 1200-200.
3.Can add V/U shape if need to transport your coils.
4.Can add ladle support to transport your hot melton.
5.The platform can designed to high temperature resistant material.
6.Can add explosion-proof equipment if need.
7.Convenient operation.

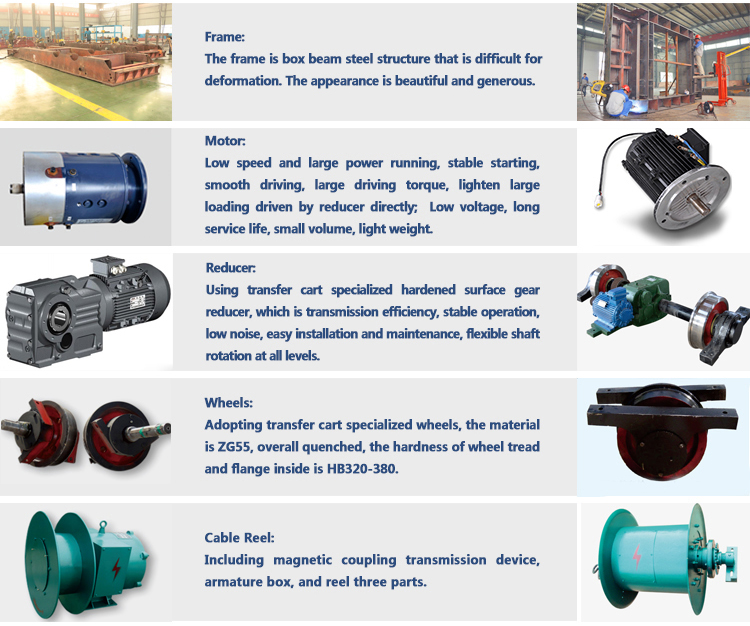

Detailed Image of 10 ton coil rail guided transfer trolley for factory warehouse coils transportation
Technical parameter table of 10 ton coil rail guided transfer trolley for factory warehouse coils transportation
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| | Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| | Heigth(H) | 500 | 600 | 700 | 1000 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
Application of 10 ton coil rail guided transfer trolley for factory warehouse coils transportation
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 10 ton coil rail guided transfer trolley for factory warehouse coils transportation has been highly approved by our customers.
